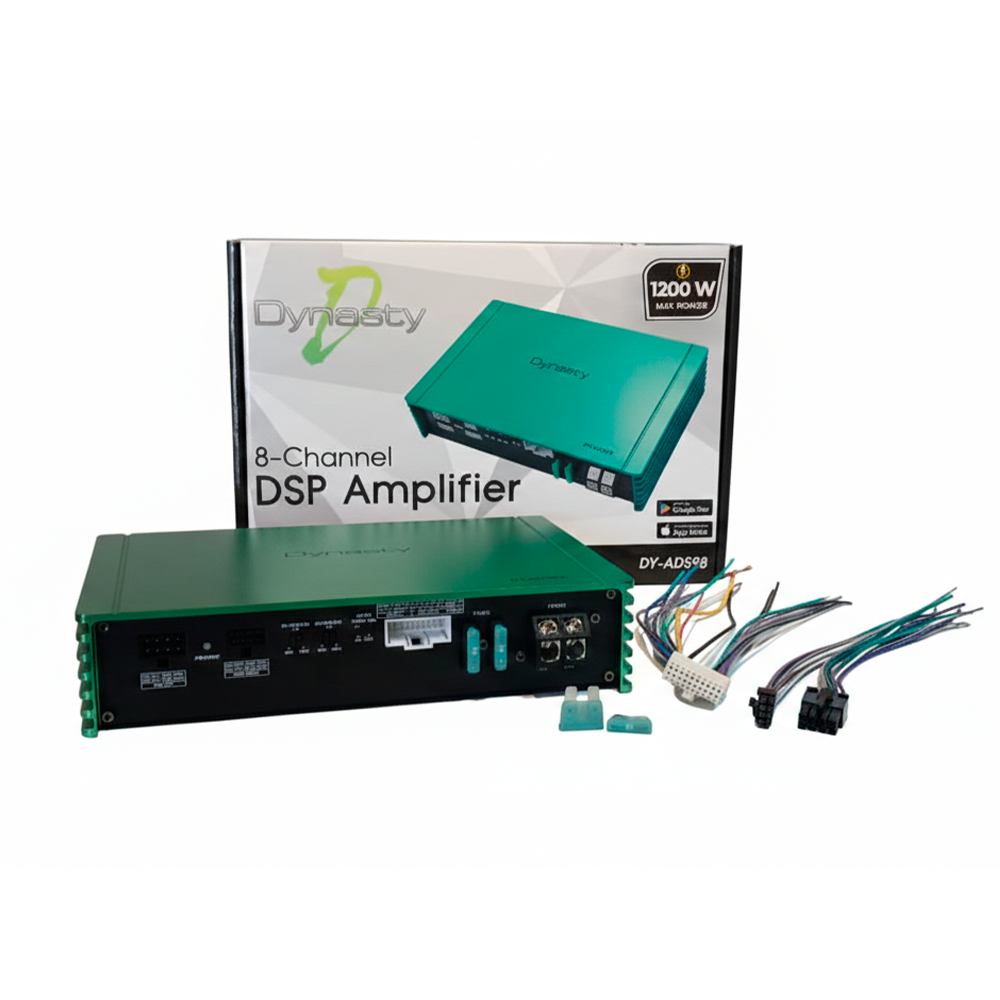

DY-ADSP8

8-Channel DSP Amplifier Features
Dimensions
245×126 52 mm
Operating Temperature
– 30°C~ 80°C
N
Amp Class
D-Class®
Power DC
10V-15V
Amp Total Channels

REM Input
High Level Input Signal:FL+/FL-or ACC control cable
DSP Channels
10
REM Output
DC 12V ≥0.2A
Amp Max Power (watts)
1200
Standby Power
≤0.1W
Amp Power @ 4 Ohm (ch x watts)RMS
8×50
Input Signal Type
8 CHannel High Level ,2 CHannel Low Level, Digital
Amp Power @ 2 Ohms (ch x watts)RMS
8 x 75

Bluetooth 5.0,USB,Optical, Coaxial
Dynamic Range (RCA Input)
≥96dB
Output Signal Type
8 CHannel Power amplifier, 10 CHannel Low Level
S/N (RCA Input)
≥96dB

Output
T.H.D
≤0.01%@1KHZ 1V
Output Signal Gain
Gain Range:Mute,-60dB ~ OdB
Frequency Response
20Hz~ 20KHz

1. Frequency Range 20Hz~ 20KHz,1Hz Accuracy
Decoding Capability
24 bit / 192KHz

2. QValue (Slope)0.5~10
Input Impedance
Low Level input:15K2, High Level Input:150

3. Gain -20.0dB~+20.0dB,0.1dB Accuracy
Each channel is Equipped with a multi-order
Low Level Output Impedance
820
Output Signal Crossover
High Low pass independent filter
Signal Input Range
RCA Input:1V RMS ,High Level input:4.5-9V RMS

Signal Output Range
RCA IOutput:2V

DSP.
Built it
Hi-Res
AUDIO
41200 W
MAX POWER
